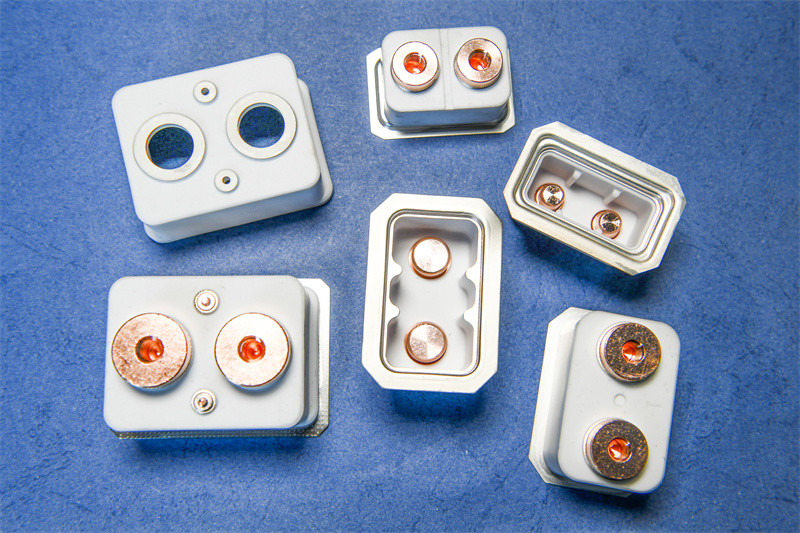

    Factory ISO9001 Automobile Relay Parts Assemblies Alumina 95 Ceramic Housing Components

    Ask Lasest Price
    Brand Name : Antaeus
    Model Number : AD-A038
    Certification : /
    Price : Negotiation
    Payment Terms : T/T or Negotiation
    Supply Ability : Full Supply
    Delivery Time : 15-45 days
    • Product Details
    • Company Profile

    Factory ISO9001 Automobile Relay Parts Assemblies Alumina 95 Ceramic Housing Components

    Factory ISO9001 Automobile Relay Parts Assemblies Alumina 95 Ceramic Housing Components


    1. Description:

    These ceramic components with two nickel-plated low-carbon steel flanges 240 mm in diameter, insulated from each other by a preformed diamond-ground alumina ceramic insulator. Prior to brazing, a coating of moly-manganese is applied to the ceramic insulator and sintered at 1400°C, then electroplated with a layer of nickel. To ensure hermetic integrity of the assembly, the ceramic is brazed in a hydrogen / nitrogen furnace at 850°C to two flanges made of nickel-iron-cobalt steel, chosen because it provides the best thermal expansion match to the ceramic.


    2. Feature Advantages:

    1) High elasticity modulus

    2) High compressive strength.

    3) Anti corrosion

    4) Abrasion resistance

    5) Impact resistance

    6) High precision

    7) High stability

    8) Good advanced ceramic materials

    9) High welding sealing performance

    10) High hardness and high density

    11) Low thermal conductivity

    12) Chemical inertness

    13) Good wear resistance

    14) High Fracture toughness

    15) Good insulation performance

    16) High temperature resistance

    17) A variety of specifications is available

    18) Satisfy various technical requests

    19) Lower medium spoilage

    20) Stiffness texture

    21) Widely apply for automotive ceramic sensor , ceramic heater ,electric heating


    3. Material Features / Properties:

    Composite(wt %)99%99.5%99.8%
    ColorWhite or IvoryWhite or IvoryWhite or Ivory
    Densityg/cm 33.823.93.92
    HardnessHRA838585
    Flexural StrengthMpa (psi*10 3 )375386381

    Factory ISO9001 Automobile Relay Parts Assemblies Alumina 95 Ceramic Housing ComponentsFactory ISO9001 Automobile Relay Parts Assemblies Alumina 95 Ceramic Housing Components

    4. Technical Parameters:

    Technical Parameters of Ceramics
    ItemsTest ConditionsUnit or Symbol99% AL2O395% AL2O390% AL2O3ZirconiaSteatiteSilicon Carbide
    Volume Density--g/cm3≥3.70≥3.62≥3.40≥5.90≥2.60≥3.08
    Tightness--Pa·m³/s≤1.0×10-11≤1.0×10-11≤1.0×10-11---
    Liquid Permeability----PassPassPassPass-
    Flexural Strength-MPa≥300≥280≥230≥1100≥120≥400
    Elastic Modulus-GPa-≥280≥250≥220-400
    Poisson Ratio-  --0.20~0.250.20~0.25---
    Thermal Shock Resistance800℃( Room Temperature) Cycle: 10 timesPassPassPass---
    Coefficient of Linear Expansion20℃~100℃×10-6 K-1---≤8-
    20℃~500℃×10-6 K-16.5~7.56.5~7.56.5~7.56.5~11.2--
    20℃~800℃×10-6 K-16.5~8.06.5~8.06.3~7.3-4
    20℃~1200℃×10-6 K-1-7.0~8.5----
    Coefficient of Thermal Conductivity20℃W/(m·k)-----90~110
    1000℃
    Dielectric Constant1MHz 20℃-9.0~10.59.0~109.0~10-≤7.5-
    1MHz 50℃--9.0~10----
    10GHz 20℃-9.0~10.59.0~109.0~10---
    Volume Resistivity100℃Ω·cm≥1.0×1013≥1.0×1013≥1.0×1013-≥1.0×1012-
    300℃≥1.0×1013≥1.0×1010≥1.0×1013---
    500℃≥1.0×109≥1.0×108-----
    Disruptive StrengthD.CkV/mm≥17≥15≥15-≥20-
    Chemical Durability1:9HClmg/c㎡≤0.7≤7.0----
    10%NaOHmg/c㎡≤0.1≤0.2-----
    Grain Size-μm-3~12----

    5. Process Flows:

    Formulating --- Granulating --- Forming --- Sintering --- Grinding --- Inspecting --- Packing


    6. Application Fields:

    New energy vehicles, charging piles, solar power generation, energy storage and power storage system, electric vehicle power system and so on.


    7. Production Facilities: Prilling Tower , Forming Machine , High Temperature Sintering Kiln


    8. Detection Devices:

    Electric Performance Tester , Film Thickness Analyzer , Granulometer , Helium Mass Spectrometer Leak Detector , Universal Pull Force Meter

    9. Order Flow Steps as belows: Inquiry ---Quotation --- Place an order --- Production --- Delivery


    10. Our advantages: Quality Assurance ; Price Competitive ; Factory Supply Directly ; Good Service

    11. Shipping and Package:

    12. Our aimed market:

    13. Guiding questions for material selection:

    In order to select the appropriate material for your application, there are several questions that you should consider.

    1) Are the mechanical properties important?

    2) Will the part be exposed to wear/friction/impacts?

    3) How many pieces are you looking to have made in your first batch?

    4) What type of atmosphere will the part be operating in; inert or oxidizing?

    5) What is the maximum operating temperature of the component?

    6) Will the component experience any thermal shock?

    7) Is electrical insulation important?

    8) Is thermal conductivity important?

    9) How important are tolerances and surface finish?


    Loudi Antaeus Electronic Ceramic Co.,Ltd was established in 2004 and engaged in R&D, design, manufacture, sales and export ceramic parts and components.Our main products are relay ceramic assemblies, fuse ceramic,electronic ceramic, electro thermal ceramic,high power ceramic resistors, multi-phase electric heating ceramic, zirconia ceramic, LED lighting ceramic,ceramic sealing connector ,biometric ceramics and etc.

    Antaeus has more than 80 patented technologies and one "New Energy Advanced Ceramic Technology Center" and one "Testing Center".

    Antaeus is a leader in providing advanced ceramics solutions for new energy vehicles battery worldwide.Our customer base, which includes many Fortune 500 companies.


    Customized are welcome according to your drawings or samples.


    FAQs (Frequently Asked Questions)


    Q1. Are you a factory or trading company?
    A: We are a manufacturer of over 19 years of experience. Welcome to visit our factory.Factory address is Loudi Economy and Technological Development Zone,Hunan,China.


    Q2: Do you send a sample to check?
    A: Sure, sample in stock is free and freight collect.

    Q3: When can I get the price?
    A: We regularly quote within 24 hours after we get your inquiry. If urgent ,Please call us or chat online.


    Q4:What is your Capacity?

    A:300,000 pcs per day;

    Q5: Are the ceramics good quality?
    A:We have passed the complete quality-control system ISO9001,IATF16949, ISO14001 and IRIS certification. We have more than 200 advanced testing equipment and instruments,All the Alumina ceramics are 100% fully inspected,including IQC, IPQC, FQC, and OQC process.

    Q6:What is the Lead time?

    A: About 15-35 days,according to the quantities required;


    Q7: Is it available to provide customized products?
    A:We can do OEM and ODM.


    Notes:please feel free to contact us for more details when you have any inquiry!
